TECNOLOGÍA

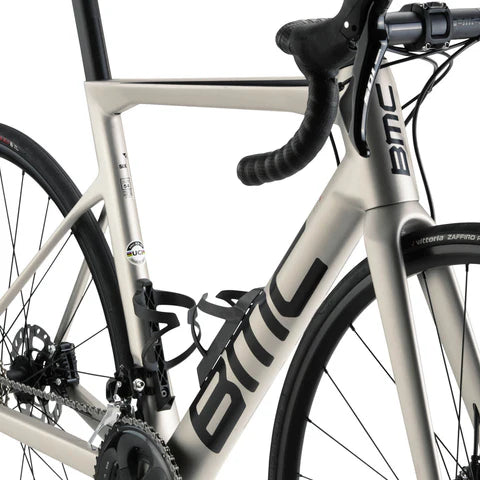

ACCELERATED COMPOSITES EVOLUTION TECHNOLOGY + (ACE+)
ACE+ no solo crea miles de prototipos virtuales basándose en la rigidez, el peso y el cumplimiento como parámetros clave, sino que ahora incluye un cuarto factor clave en la creación de prototipos, la aerodinámica.

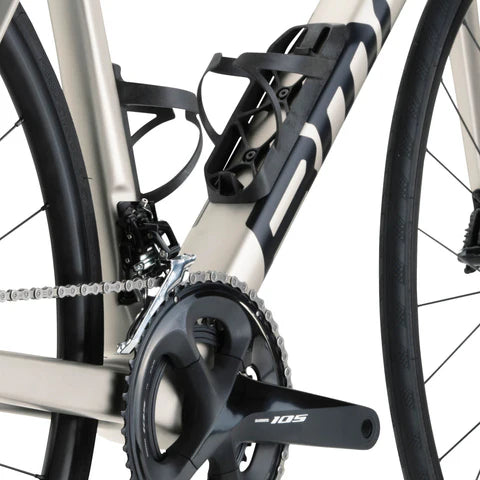

DISEÑO AEROCORE
Los portabidones de carbono superligeros se integran a la perfección con el tubo diagonal y el tubo de sillín remodelados, lo que da lugar a una importante reducción de la resistencia aerodinámica cuando se usa con bidones.

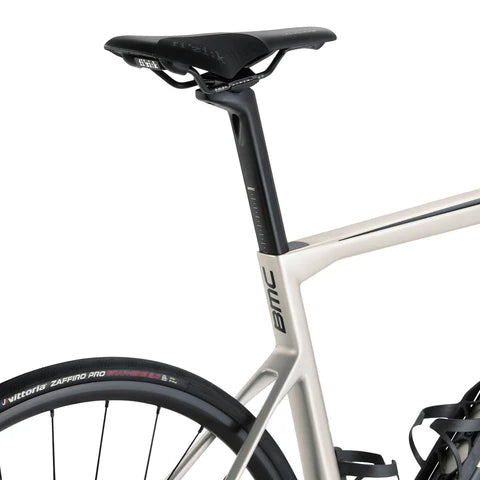

TIJA DE SILLIN DE TIPO "D"
La última evolución de nuestra emblemática tija de sillín de tipo “D”: este diseño optimizado cuenta con una abrazadera de sillín minimalista, lo que reduce el peso, al tiempo que asegura un excelente rendimiento aerodinámico y cumplimiento.
LA COMODIDAD ES VELOCIDAD
La nueva Teammachine SLR ofrece más cumplimento que nunca, gracias a la última evolución de la tecnología Tuned Compliance Concept (TCC).
Cuadro
Cuadro:
Teammachine SLR Carbon with Aerocore Design | Stealth Dropout Design | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle | Optimized for Aerocore Bottle Cages
Horquilla:
Teammachine SLR Carbon | TCC Race Compliance Level | Internal Cable Routing | Flat Mount Disc | Stealth Dropout Design | 12 x 100mm Thru-Axle
Cockpit
Potencia:
BMC RSM 01
Manillar:
BMC RAB 03 | Ergo Top Shape | Compact Bend
Seat
Tija de Sillín:
Teammachine SLR Carbon D-Shaped Seatpost
Sillín:
Fizik Antares R7
Frenos
Pinzas de Freno:
SHIMANO 105 BR-R7170
Discos:
SHIMANO SM-RT70
Tamaño del disco:
160 / 140mm
Ruedas
Llantas:
Mavic Open Disc
Bujes:
CL-712 (F) | RXC-1425 (R) | Thru-Axle
Neumáticos:
Vittoria Rubino | 25mm
Información Tubeless:
Tubeless Ready Rims | Non-Tubeless Clincher Tire
Información adicional
Paso de rueda:
30mm
Clasificación ASTM:
Level 1
Límite de peso del sistema:
110kg

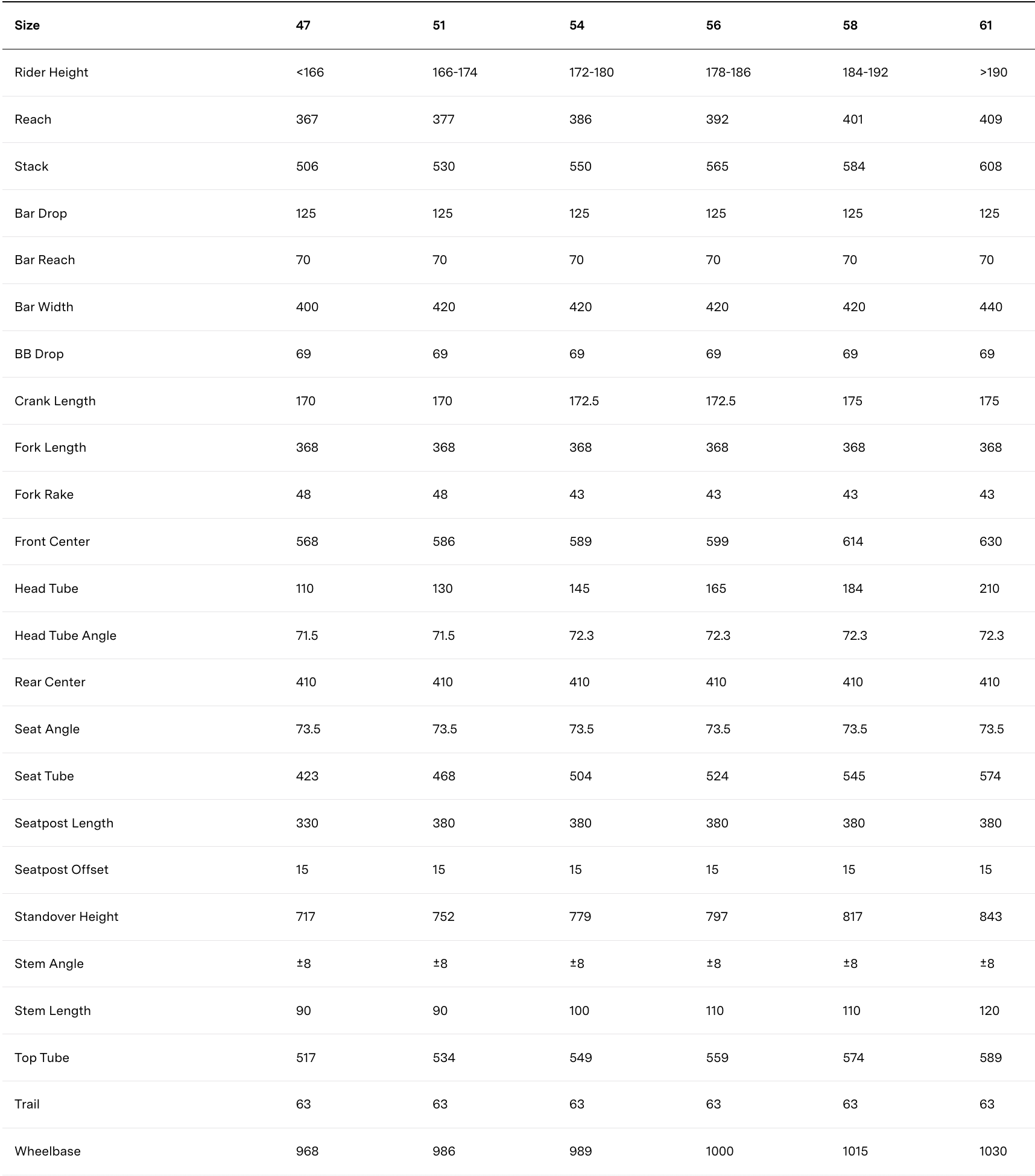

GEOMETRÍA
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 367 | 377 | 386 | 392 | 401 | 409 |
| Stack | 506 | 530 | 550 | 565 | 584 | 608 |
| Bar Drop | 125 | 125 | 125 | 125 | 125 | 125 |
| Bar Reach | 70 | 70 | 70 | 70 | 70 | 70 |
| Bar Width | 400 | 420 | 420 | 420 | 420 | 440 |
| BB Drop | 69 | 69 | 69 | 69 | 69 | 69 |
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Fork Length | 368 | 368 | 368 | 368 | 368 | 368 |
| Fork Rake | 48 | 48 | 43 | 43 | 43 | 43 |
| Front Center | 568 | 586 | 589 | 599 | 614 | 630 |
| Head Tube | 110 | 130 | 145 | 165 | 184 | 210 |
| Head Tube Angle | 71.5 | 71.5 | 72.3 | 72.3 | 72.3 | 72.3 |
| Rear Center | 410 | 410 | 410 | 410 | 410 | 410 |
| Seat Angle | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Seat Tube | 423 | 468 | 504 | 524 | 545 | 574 |
| Seatpost Length | 330 | 380 | 380 | 380 | 380 | 380 |
| Seatpost Offset | 15 | 15 | 15 | 15 | 15 | 15 |
| Standover Height | 717 | 752 | 779 | 797 | 817 | 843 |
| Stem Angle | ±8 | ±8 | ±8 | ±8 | ±8 | ±8 |
| Stem Length | 90 | 90 | 100 | 110 | 110 | 120 |
| Top Tube | 517 | 534 | 549 | 559 | 574 | 589 |
| Trail | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase | 968 | 986 | 989 | 1000 | 1015 | 1030 |
