By suspending the rider with damped, tunable travel—20mm front/30mm rear—Future Shock Technology absorbs bump forces to boost your control and capability while retaining the efficiency and responsiveness of a rigid frame. Because as far as power transfer goes, it is a rigid frame. Power to the pedals makes the bike jump like a scared cat. You’re efficient, you’re comfortable, you’re in control. Your bike is light, nimble, and responsive.

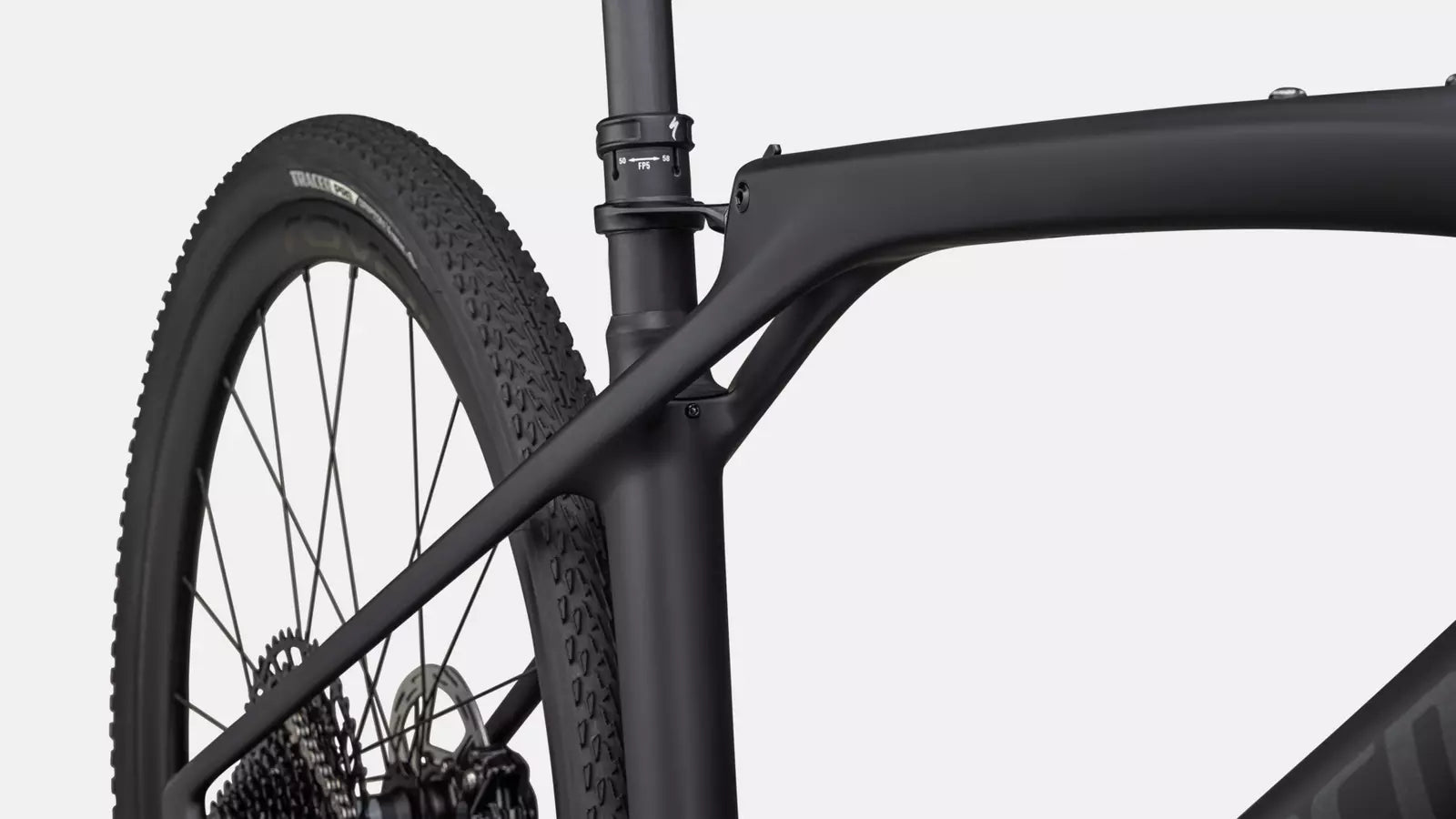

The new Diverge doesn’t just have gorgeous lines, it has perfect curves too. Future Shock Rear puts 30mm of rear travel in the ideal path to smooth out rough road. Its hydraulic damping controls travel to eliminate “bobbing” under power and ensure big hits never catapult you from the saddle, all without compromising fit or pedaling efficiency.

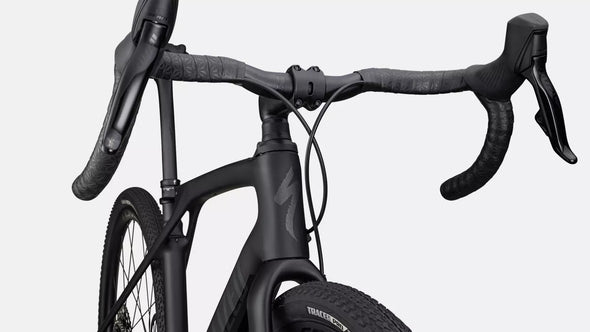

Born from decades of innovation and our Smoother is Faster philosophy, Future Shock was created to develop bikes that win on cobblestones, but it’s found its purest expression on gravel. It’s 20mm of adjustable, damped front travel that keeps you in control and on target, all while protecting your hands, arms, and shoulders from the battering.
More capability means more confidence, more confidence means more rides, more rides mean more fun, and it all starts at the contact patch. Nothing unlocks capability like tire clearance, and we’re feeling generous. 47mm on a 700c wheel and 2.1” on 650B. Diverge STR is the most capable gravel bike we’ve ever made, so it’s the most fun. We did the math.
Saddle
Body Geometry Power Expert
Stem
Future Stem, Comp
SeatPost
S-Works Carbon Seat Post, 20mm Offset
Seat Binder
Specialized Alloy, 33.3mm

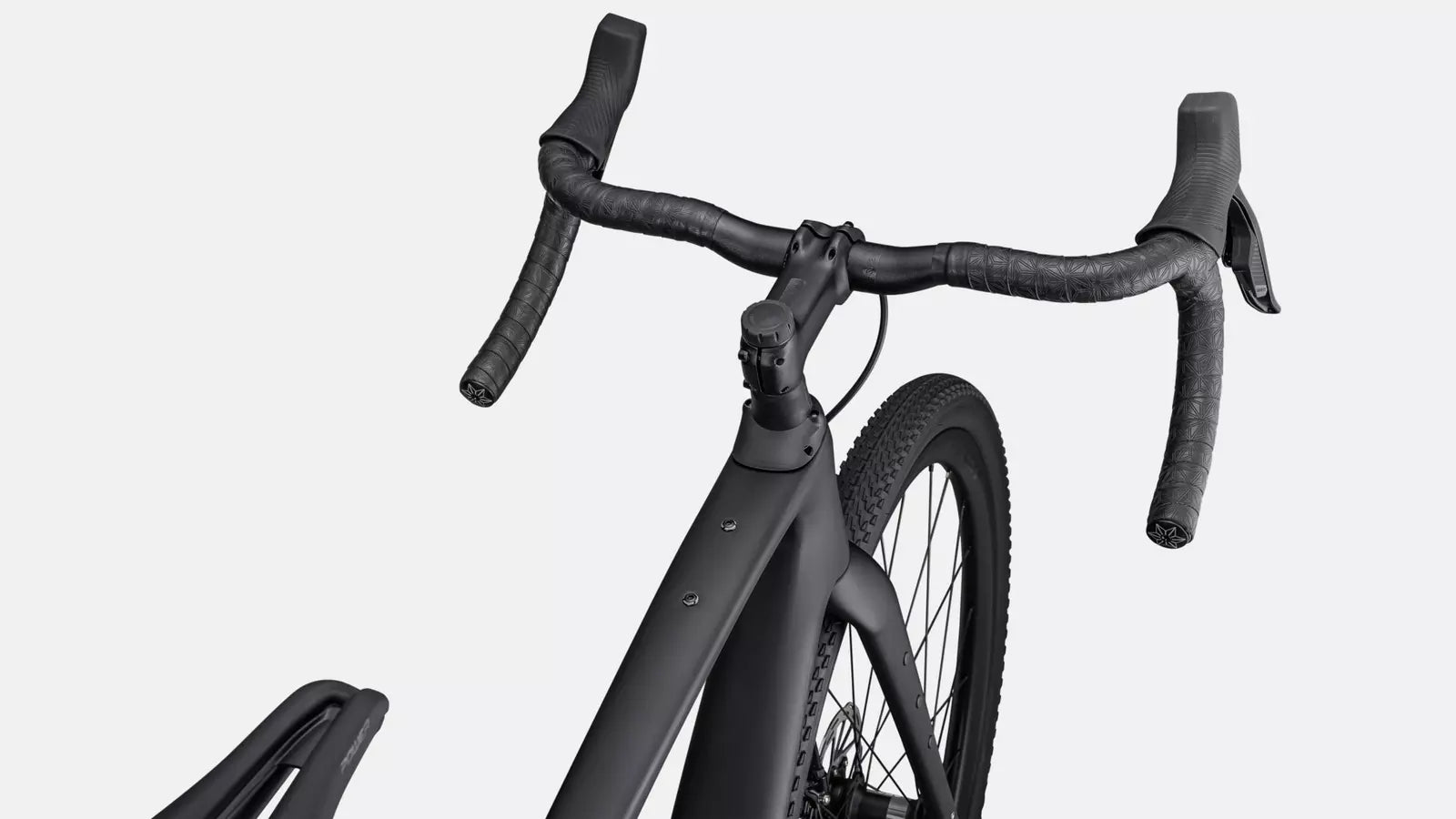

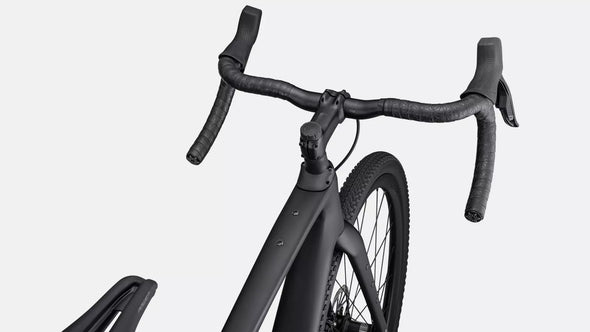

Handlebars
Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
Tape
Supacaz Super Sticky Kush
SUSPENSION
Fork
Future Shock 2.0 w/ Damper, Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount
FRAMESET
Frame
Diverge FACT 11r carbon frameset with front and rear Future Shock suspension, SWAT™ Door integration, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
ACCESSORIES
SWAT
Integrated SWAT door, internal storage system
WHEELS & TIRES
Inner Tubes
Presta valve, 48mm
Rear Tire
Tracer Pro 2BR, 700x42
Front Tire
Tracer Pro 2BR, 700x42
Front Wheel
Roval Terra C, 25mm inner width carbon rim, 32mm depth, NEW DT 370 hub, 24h, DT Swiss Comp Race spokes
Rear Wheel
Roval Terra C, 25mm inner width carbon rim, 32mm depth, NEW DT 370 Star Ratchet hub, 24h, DT Swiss Comp Race spokes
DRIVETRAIN
Bottom Bracket
SRAM DUB BSA 68
Rear Derailleur
SRAM GX Eagle AXS, w/ battery cover
Chain
SRAM GX Eagle, 12-speed
Cassette
SRAM NX Eagle PG-1230, 12-speed, 11-50t
Crankset
SRAM Rival 1 Wide
Shift Levers
SRAM ED RIV ETAP AXS D1 SJD REAR/RT F20
Chainrings
40t
BRAKES
Front Brake
SRAM Rival eTAP AXS, hydraulic disc
Rear Brake
SRAM Rival eTAP AXS, hydraulic disc
* Pesos basados en cuadros pintados de producción como se muestra en la imagen. Los pesos reales variarán en función del color, tamaño del cuadro y variación de componentes. Las especificaciones están sujetas a cambios sin previo aviso.
49 |
52 |
54 |
56 |
58 |
61 |
|
Largo de biela |
165mm |
170mm |
172.5mm |
172.5mm |
175mm |
175mm |
Ancho de manubrio |
380mm |
400mm |
420mm |
420mm |
440mm |
440mm |
Largo de avance |
80mm |
90mm |
100mm |
100mm |
110mm |
110mm |
Saddle Width |
155mm |
155mm |
143mm |
143mm |
143mm |
143mm |
Largo de poste de asiento |
300mm |
300mm |
360mm |
360mm |
360mm |
360mm |
Stack |
514mm |
527mm |
544mm |
565mm |
591mm |
612mm |
Alcance |
375mm |
380mm |
384mm |
395mm |
402mm |
408mm |
Largo de tubo de dirección |
109mm |
120mm |
137mm |
157mm |
184mm |
204mm |
Ángulo de tubo de dirección |
71.75° |
72.5° |
73° |
73.5° |
73.5° |
74° |
BB Height |
266mm |
266mm |
268mm |
268mm |
268mm |
268mm |
BB Drop |
74mm |
74mm |
72mm |
72mm |
72mm |
72mm |
Trail |
63mm |
58mm |
58mm |
55mm |
55mm |
52mm |
Fork Length, Full |
369mm |
369mm |
369mm |
369mm |
369mm |
369mm |
Fork Rake/Offset |
47mm |
47mm |
44mm |
44mm |
44mm |
44mm |
Distancia |
574mm |
577mm |
579mm |
591mm |
606mm |
613mm |
Largo de vaina inferior |
410mm |
410mm |
410mm |
410mm |
410mm |
410mm |
Distancia entre ejes |
973mm |
975mm |
978mm |
991mm |
1005mm |
1012mm |
Largo de tubo superior, Horizontal |
508mm |
531mm |
540mm |
562mm |
577mm |
595mm |
Bike Standover Height |
705mm |
728mm |
748mm |
769mm |
796mm |
824mm |
Seat Tube Length |
431mm |
462mm |
481mm |
504mm |
532mm |
567mm |
Ángulo de tubo de asiento |
75.5° |
74° |
74° |
73.5° |
73.5° |
73° |
